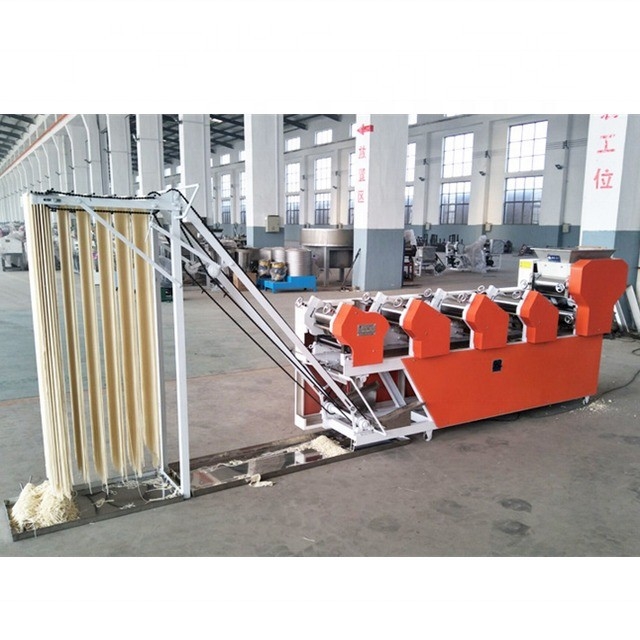

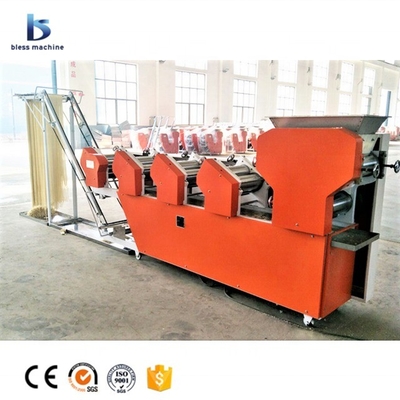

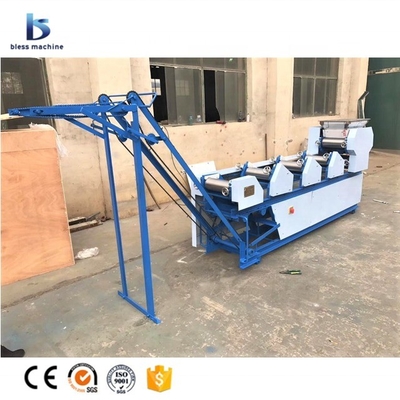

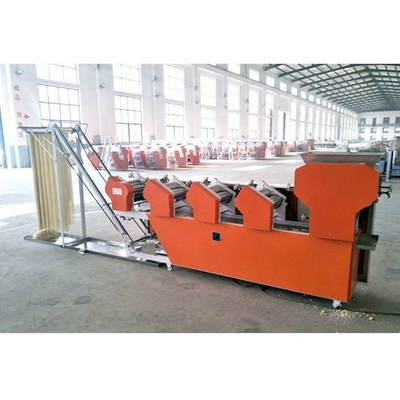

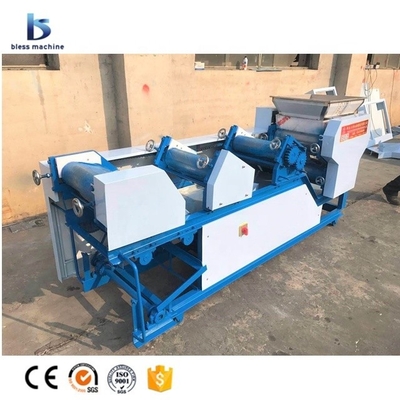

Electric Noodle Making Machine for Your Restaurant Noodle Width 2mm/3mm/5mm/10mm/20mm

Product Description for Ramen Instant Noodle Making Machine

1. Automatic folding, dough specifications: width 260mm, thickness adjustable.

2. Automatic double-sided dusting, the dusting amount can be controlled.

3. Automatic winding, can be selected according to the actual needs of customers (optional).

4. Automatically cut noodles, the noodle length is 50cm (the noodle length is adjustable-optional).

5. Frequency conversion speed regulation, this machine is equipped with three frequency converters to enhance the operability. It is driven by three decelerating motors with strong power.

6. Optional device: 1). Automatic belt conveyor. 2). Automatic rod up device (choose one of the two).

7. The machine is made of SUS304 stainless steel, the surface of the machine body is smooth, there is no burr, no rust, easy to clean, and the whole machine looks beautiful and generous.

8. This machine can produce dried noodles and wet noodles

Description for each function

1. Knead dough: adopts horizontal knead dough barrel, strong power, geared motor, high speed, low rotation, static knead dough,

Knead the processed flour repeatedly to achieve granular, homogenized, non-heating, non-sticking, and gluten-free. The mixing time can be adjusted freely,

After the kneading is completed, it will automatically unload and enter the proofing and curing process. The operation is easy to understand, simple, safe, and practical. The kneading capacity is optional

(50-200kg) is divided into single shaft and double shaft stirring

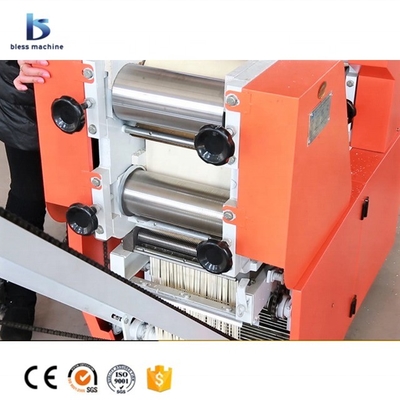

2. Pressing the surface of concrete: The first line uses diagonal rollers to form a surface belt, which is non-slip, non-adhesive, non-breaking, and is automatically conveyed.

With automatic compound and manual compound dual mode. For your selection. The compound type gives full play to the power of gluten and greatly increases the pressure and performance strength of the noodles.

Achieve smooth, transparent, tough, bite, and boil-resistant effects. In the rolling process, we use frequency conversion speed regulation and photoelectric tracking to realize the synchronous operation of the production line.

Each group is equipped with an independent OFF automatic or manual emergency stop switch, which greatly improves the safety of the noodle pressing machine, while also reducing and reducing the labor intensity of the personnel.

3. Fold skin machine: One machine with multi-purpose function comes with a skin machine, which can not only make all kinds of noodles, but also complete skin production.

(For example: dumpling wrappers, wonton wrappers, steamed bun wrappers, spring roll wrappers, etc.) The output is high, the number of sheets can be adjusted freely, with an automatic double-sided powder spreader, and the spraying is even.

No powder leakage, automatic treatment of powder stains, and the amount of powder can be adjusted freely.

4. Cut off: noodle forming is an important part of the product. This machine uses a counter, an electronic decoder, the length and weight of the cut

It can be set freely, and the automatic cutting adopts high-precision hob type, which is durable and has a conveying platform for multi-person picking operations.

Different noodle sizes and shapes can be customized and interchanged.

5. Knife: It is made of special material and high precision processing. Bearing assembly, no need to add oil, no burrs on the cut surface, durable, usually not damaged by humans,

The normal service life is 3-5 years.

6. Tool selection: square knives, round knives, face-cutting knives, special-shaped knives (size from 0.6-7.2mm)

How to use

Pour flour into the barrel first, after starting the motor, add water (the ratio of flour to water is about 4:1 when making noodles) when the requirements are met, the gate can be opened, and the flour will be finned

Roll out.

Precautions for Ramen Instant Noodle Making Machine
1 Turn on the power before using the machine, perform a test run, and check whether all parts of the machine are normal
2. The rotation direction of the stirring fin should be consistent with the direction indicated by the arrow;
3. Lubrication of the machine: grease the two bearings on the mixing spindle once a year, check the sealing function of the oil seal, and replace it if it is damaged. Don't put your hands into the barrel when mixing, the casing must

Must be grounded.

Product main parameters:

Disassembly sequence of the machine:
1. Remove the lid of the barrel
2. Remove the stirring wings
3. It can be inspected by removing the chassis and barrel
4. Power on

Cleaning and maintenance for Ramen Instant Noodle Making Machine

1. Frequently check the fasteners of various parts during use, and tighten them in time if they are loose;
2. The gear meshing area of this machine is lubricated with grease, and the oil is added once every half month. There are powder metallurgy bearings in the bearing housing. The oil cup on the bearing housing must be filled with oil twice per shift, otherwise the shaft and the bearing shells will be glued at your own risk;
3. When mixing noodles, the amount of flour added should not exceed the capacity of the noodle bucket, so as not to burn the motor;
4. If oil is found on the dough, it should be repaired in time and the oil seal should be replaced.
5. The machine should be cleaned in time after use, so as not to affect the reuse;
6. When cleaning, the height of water in the noodle bucket should not exceed the lowest point of the shaft to prevent water from overflowing from the shaft hole of the side plate of the noodle bucket or flowing into the side plate interlayer to affect the service life;
7. This machine is a drip-proof appliance, and it is forbidden to clean it with a water spray pipe.

Packing list for Ramen Instant Noodle Making Machine

Tool selection: square knife, round knife, face-cutting knife, special-shaped knife (size from 0.6-7.2mm)

Optional device:

1. Automatic belt conveyor. 2. Automatic rod up device (choose one of the two).

The machine is made of SUS304 stainless steel, the surface of the machine body is smooth, there is no burr, no rust, easy to clean, and the whole machine looks beautiful and generous.

Application area for Ramen Instant Noodle Making Machine

It is suitable for hotels, restaurants, food processing factories, unit canteens, and individuals to make pasta.
